The tube is normally mounted by clamping around the periphery of the anode cooler.
Up to 12 kilowatts may be safely dissipated by the anode with the recommended forced-air cooling.
| GENERAL DESCRIPTION |
|

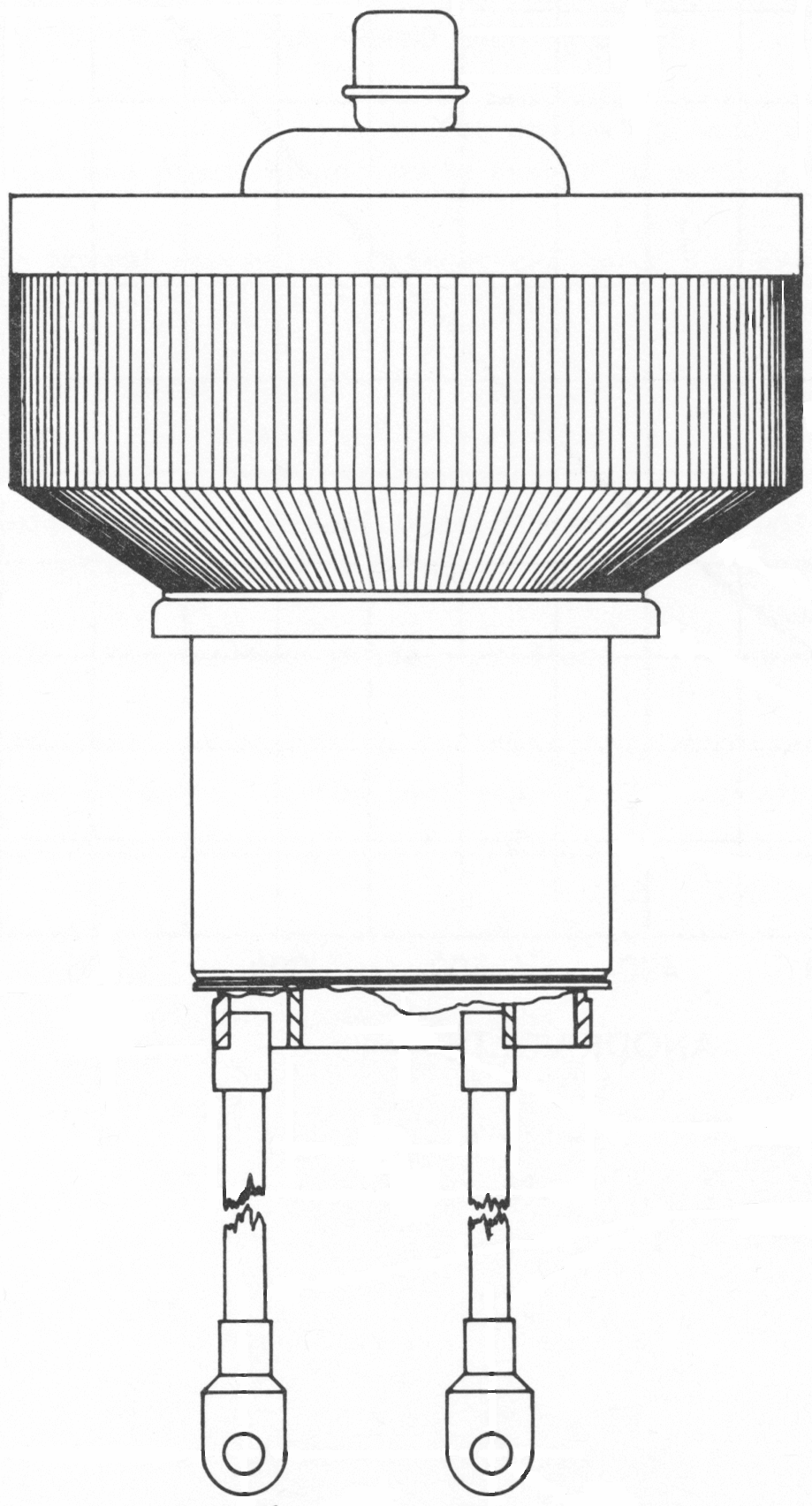

The 2CX10,000F is a ceramic/metal forced-air cooled high-vacuum diode designed for clipper or charging service. It employs a thoriated-tungsten filament to allow fast warmup. Flexible filament leads are used to simplify connection to the source of filament power so that no socket is required. The tube is normally mounted by clamping around the periphery of the anode cooler. Up to 12 kilowatts may be safely dissipated by the anode with the recommended forced-air cooling. |
|
| TECHNICAL SPECIFICATIONS | |
| ELECTRICAL | |
| Filament Voltage Current at 7.0 Volts nominal |
Thoriated Tungsten filament 7.0 V 110 A |
| Peak Inverse Plate Voltage | 35 kV |
| Maximum Plate Dissipation | 12 kW |
| DC Plate current | 8.0 A |
| Peak Plate Current | 25 A |
| MECHANICAL | |
| Maximum Overall Dimensions Length (including flexible filam. leads) Diameter (anode cooler) |
17.75 in; 45.1 cm 7.05 in; 17.9 cm |
| Net Weight (approximate) | 11 lbs; 5 kg |
| Operating Position | Vertical, Base Down or Up |
| Maximum Operating Temperature Ceramic/Metal Seals Anode Core |
250°C 250°C |
| Base | Special, with Flexible Filament Leads |
| Cooling | Forced Air |
| Recommended Socket | None Required |
| Available Air System Chimney (use is dependant on tube mounting) |
SK-1306 |
| Specifications may change without notice | |
| THIS TUBE IS USED IN THE FOLLOWING SHORTWAVE BROADCAST TRANSMITTERS | ||
| Manufacturer | Transmitter specifications | Power in kW |
| Harris | SW-50 B | 50 |
| SW-100 B | 100 | |
| THIS TUBE IS AVAILABLE FROM | ||
| Manufacturer | Rebuilder | Distributor |
| Econco | Richardson Electronics | |
| Kennetron | ||
| PRICE LEVEL (US$) | |||||
| 1 | 2 | 3 | 4 | 5 | 6 |
| 0 - 10 | 10 - 100 | 100 - 1000 | 1000 - 10,000 | 10,000 - 50,000 | 50,000 - 100,000 |
